| Reading angle |
Tilt |
| Kind |

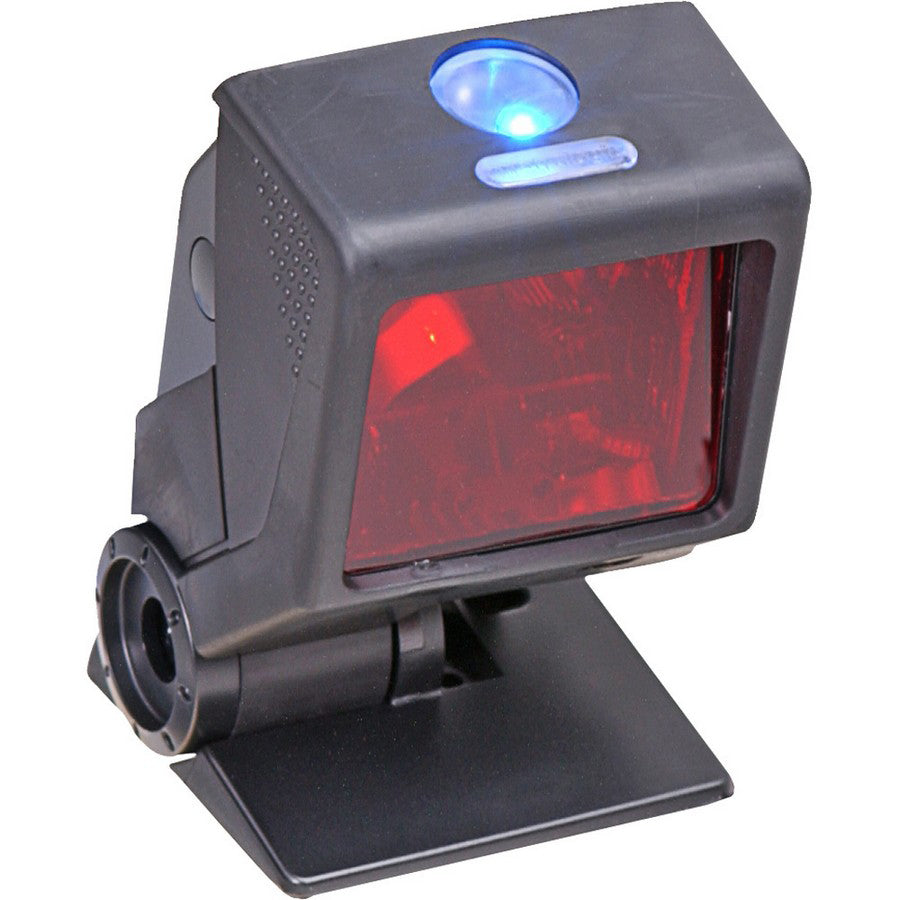

Fixed barcode reader |
| Product color |
Black |
| Sensor type |
Laser |
| Power source type |
Sector |
| Linear (1D) barcodes accepted |
GS1-128 (UCC/EAN-128) |
| Matrix (2D) barcodes accepted |
Non supported |
| Weight |
170g |
| Input voltage |
5V |
| Brightness levels (direct ray |
0 - 4842 lux |
| Width |
67mm |
| Wave length |
650nm |
| Maximum scan width |
27.9cm |
| Depth |
66mm |
| Height |
108mm |
| Horizontal Reading Angle (Pitch) |
0 - 60° |
| Vertical reading angle (Yaw) |
0 - 60° |
| Operating humidity level |
5 - 95% |
| Connectivity technology |
With wire |
| Operating temperature |
-20 - 40°C |
| Non-operating temperature |
-40 - 60°C |
| Power consumption (sleep mode |
1.2W |
| Certification |
IEC60825-1. EN60825-1. FCC. ICES. EN55022 |
| Audible alarm |
Yes |
| Standard interfaces |
USB |
| Typical power consumption |
1.4W |
